The IKEA Plane Adjustment Hammer™

Did you know that many pieces of furniture you can buy at IKEA come with a Plane Adjustment Hammer™?

If you didn’t know this, please read on.

The IKEA Plane Adjustment Hammer™ is usually found in the see-through bag of hardware that comes with your piece of furniture. The only thing you have to do is make a handle for it. If you have (old) furniture from IKEA that has fallen apart, it is still possible to salvage several plane adjustment hammer heads from it. You just have to know where to look.

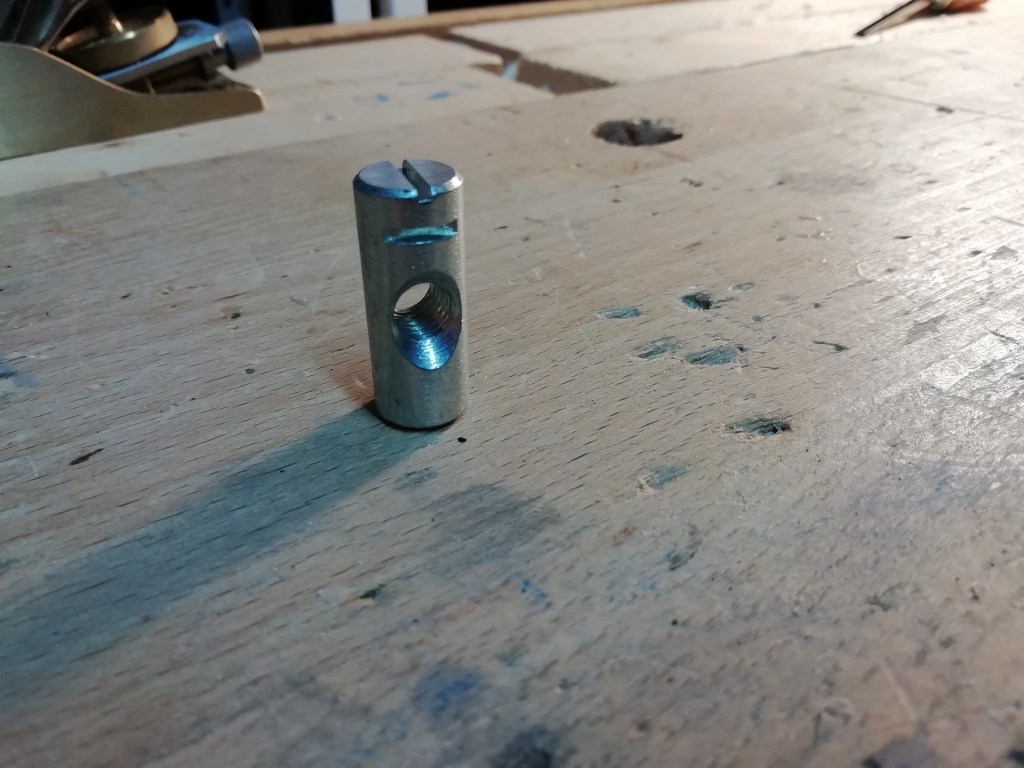

This is the hammer head we are looking for:

Standard IKEA Plane Adjustment Hammer Head

Making the handle

Start by selecting a suitable piece of hardwood that has straight grain (grain running straight through the piece from front to back). I used a small offcut of birch. You can use pretty much any wood that is straight, like ash, oak, or hickory.

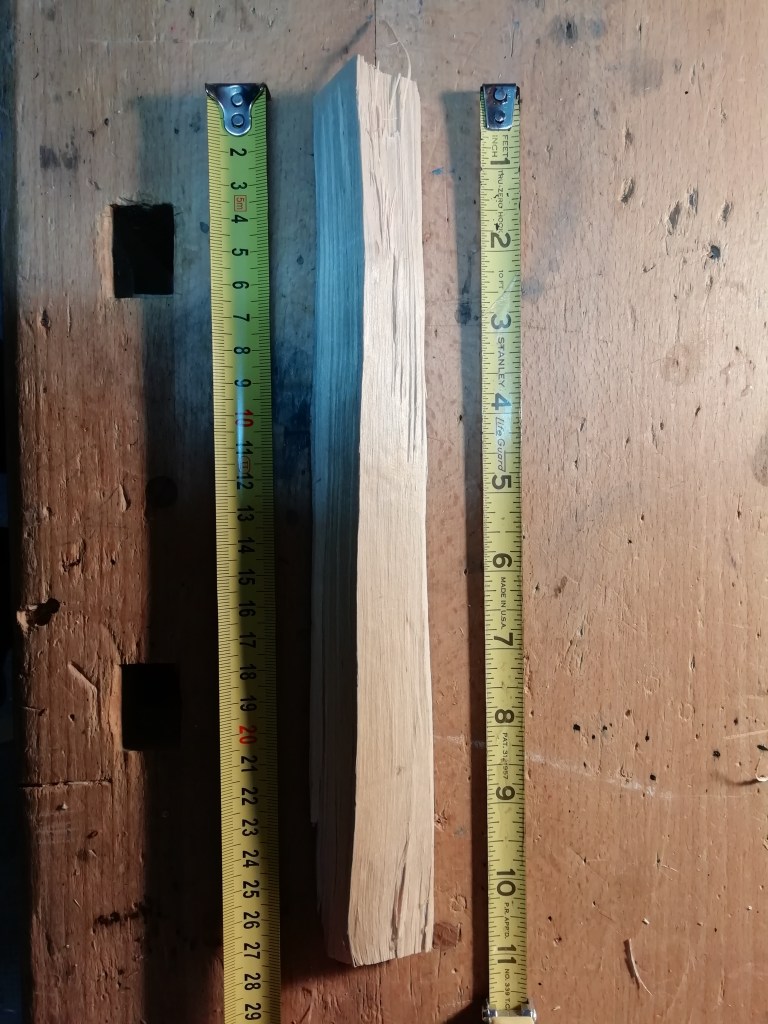

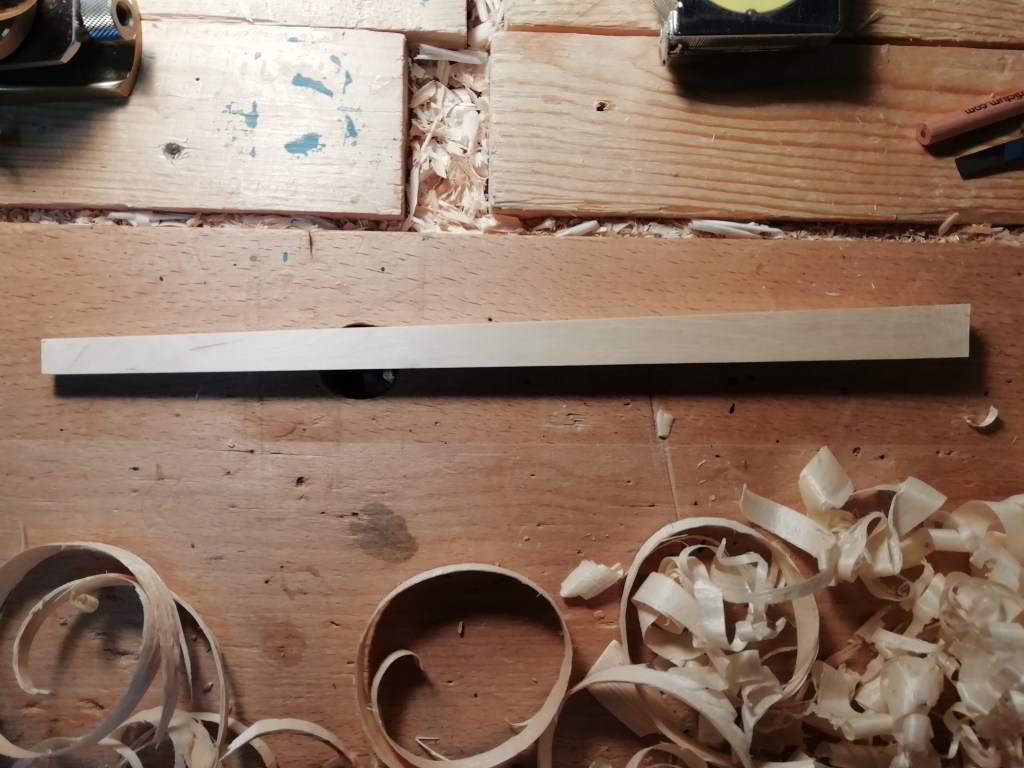

I started with a piece of wood about 11″ long

It is not really that important what shape you make the handle, as long as it lies comfortably in your hand. I like to taper the handle so it is a bit thicker at the end to balance the hammer head but it is entirely up to you. In my example I made the hande using a handplane but you can also use a drawknife, spokeshave or pocket knife to shape the handle. Using a handplane will however give you the best results.

Notice the slight taper on the handle

I tapered the handle and chamfered the edges, making it roughly octagonal.

Shaping the tenon

Once you have shaped the handle it is time to make the tenon that will fit in the hammer head. You can use a pocket knife for this, or a dowel plate. If you have a lathe you could turn the tenon on there. The tenon should be about 7mm / a little over 1/4″ in diameter.

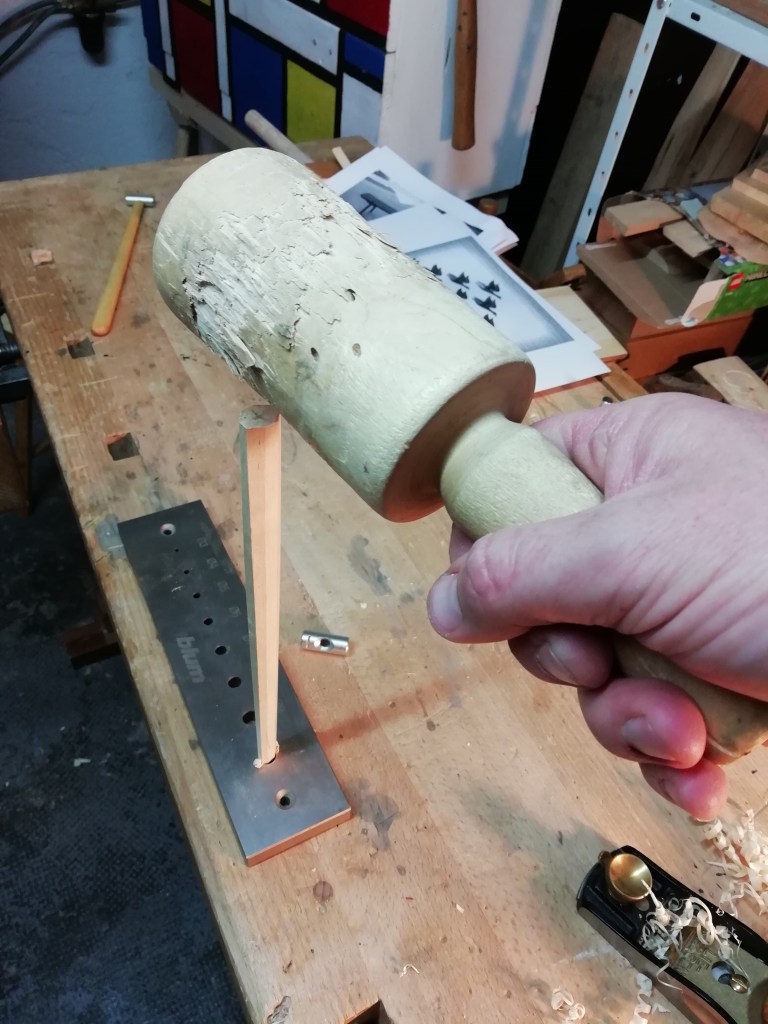

Using my dowel plate to make the tenon

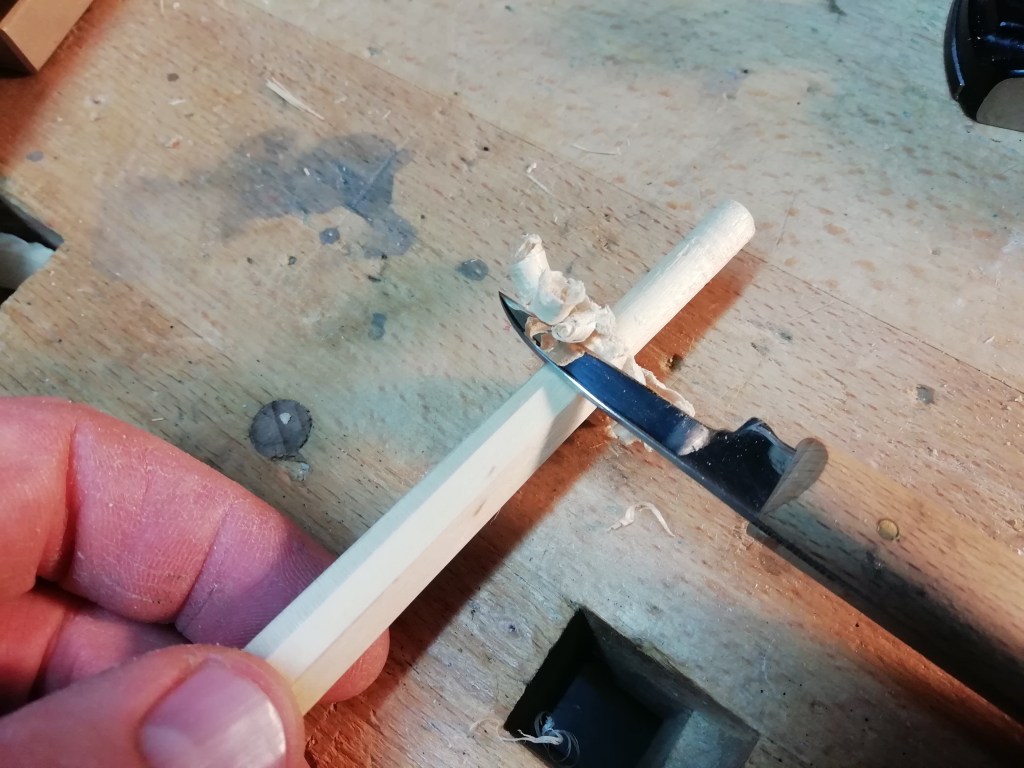

Removing the waste and making a tenon shoulder

Once you have shaped the tenon, do a test fit to see that everything lines up. It should be a pretty tight fit. If things don’t line up because you messed up the tenon, just saw it off and start a new one (the hammer can be as long or short as you want).

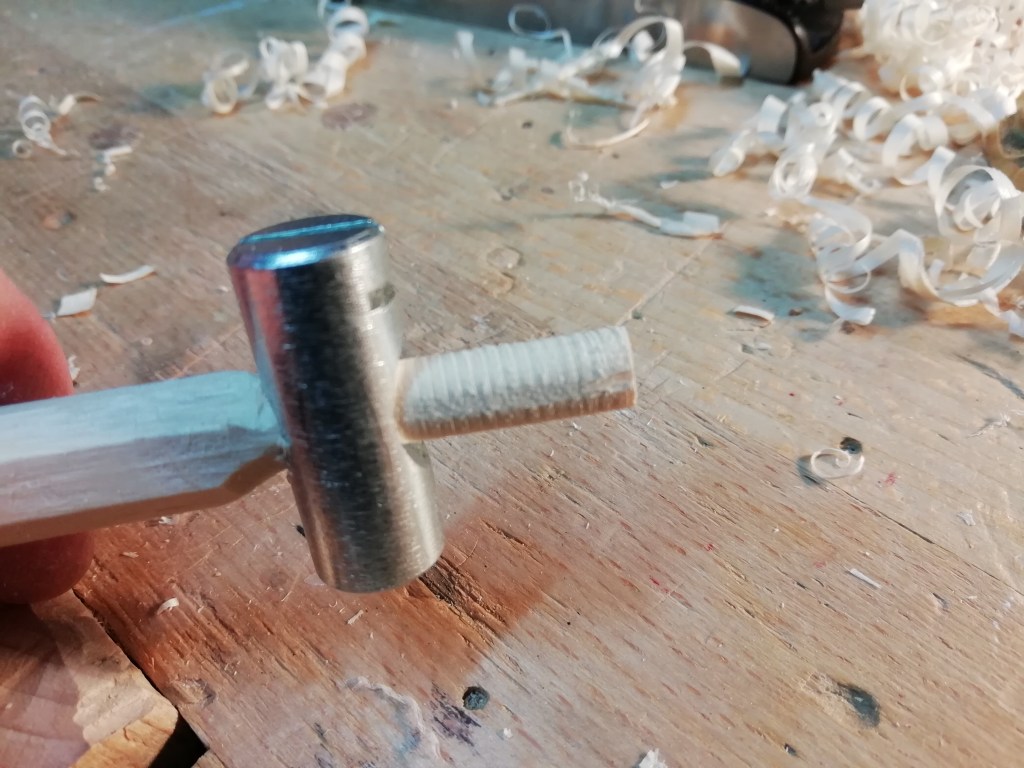

Note the thread after screwing the hammer head onto the tenon

Interesting note: IKEA Plane Adjustment Hammer heads are threaded on the inside. This is a pretty brilliant Swedish invention, as the wedge will push the sides of the tenon into the thread making the joint nice and strong.

Turn the head clockwise to thread it onto the handle. To remove the head, turn the head counterclockwise.

Make a small wedge

When you are happy with the dry fit, make a wedge roughly the width of the tenon, preferably out of oak. Making a small wedge is difficult so what I do is make a normal sized wedge and split it to the correct width.

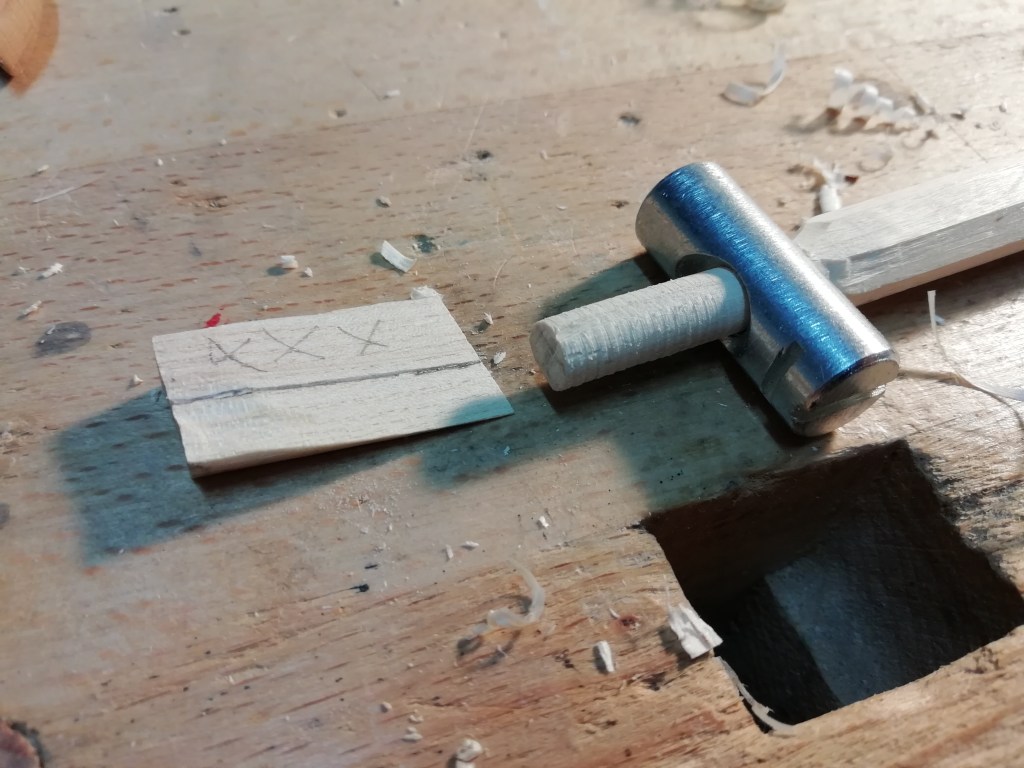

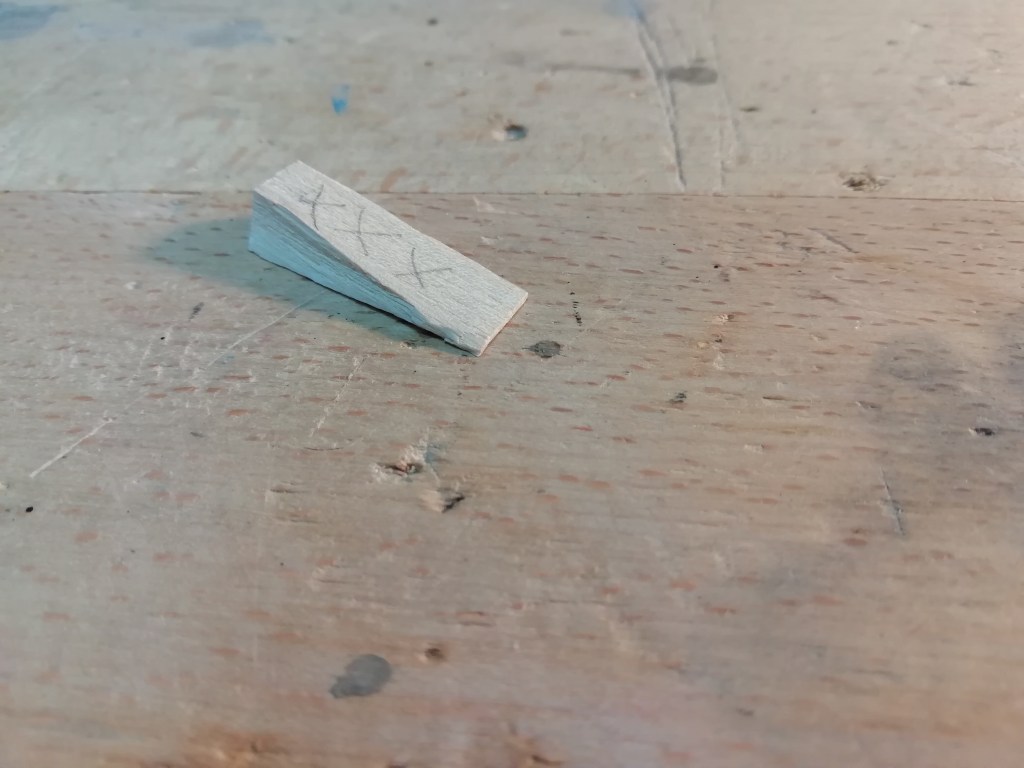

Wedge done and ready to be split to size

You can keep the offset and use it for a future plane adjustment hammer.

A spare wedge for a future hammer

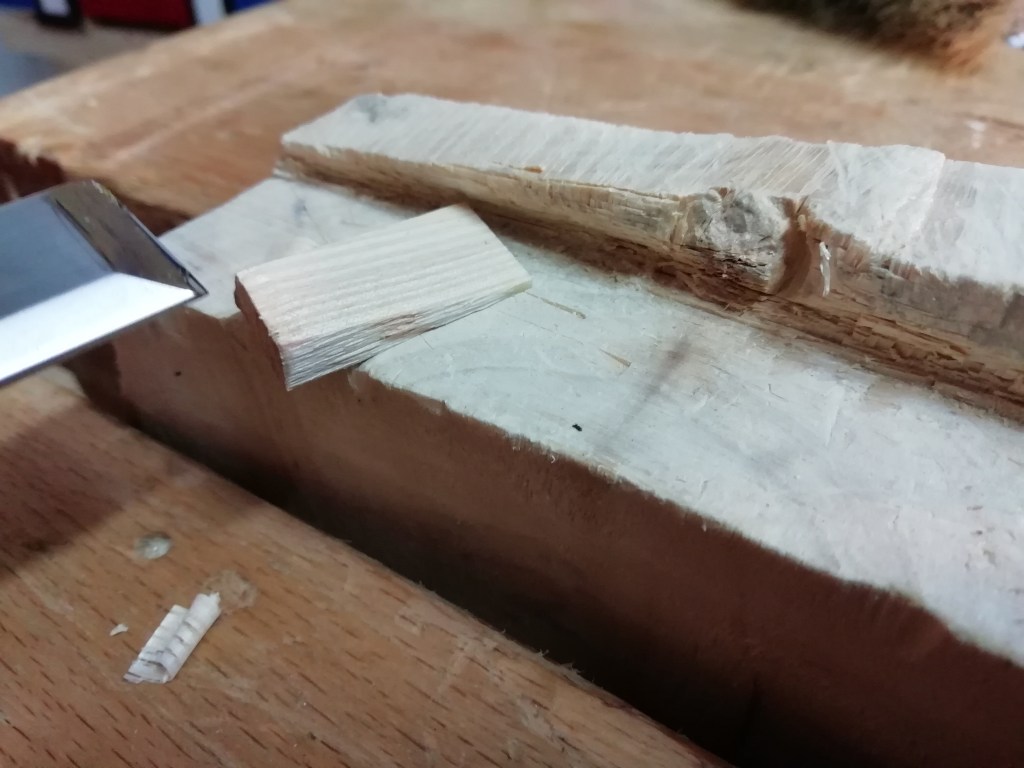

This is how I make my wedges: with a chisel and a block in my vise.

Glue it up

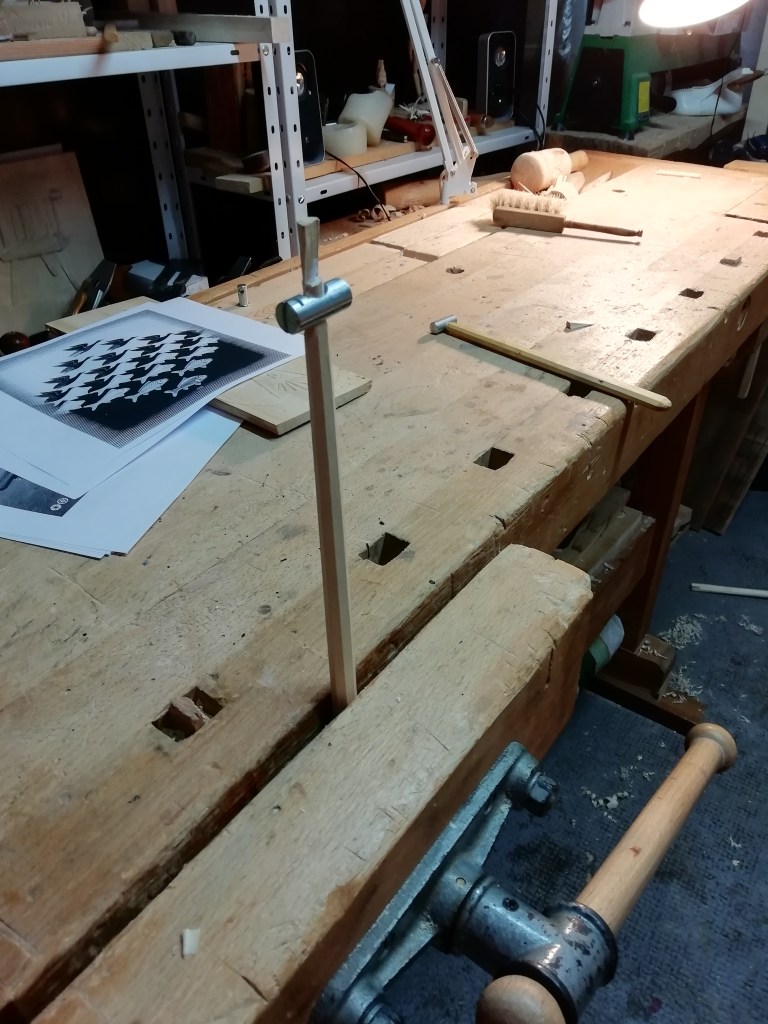

With the wedge done, put the handle in a vice and saw a small kerf for the wedge. Next, add some white glue to the tenon and thread the head onto the handle. Line the head up with the handle, paint some glue on the wedge and hammer it home.

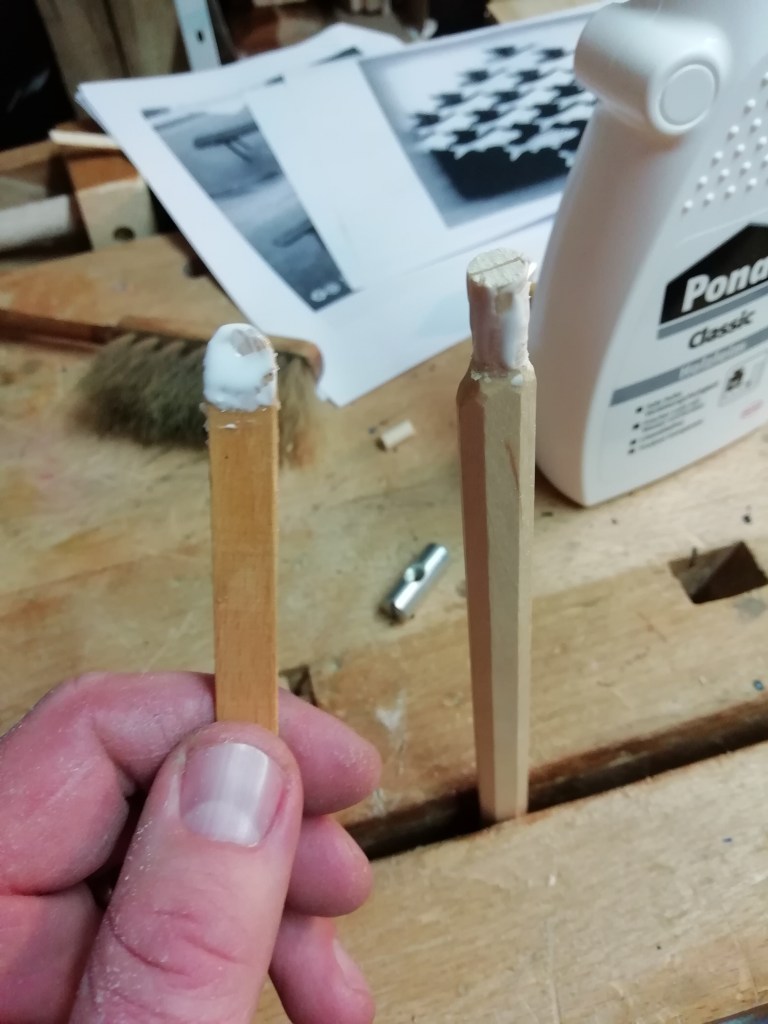

Glued up and wedged

Let it dry overnight and cut off the excess in front of the head, leaving it a little proud in case you need to make adjustments later.

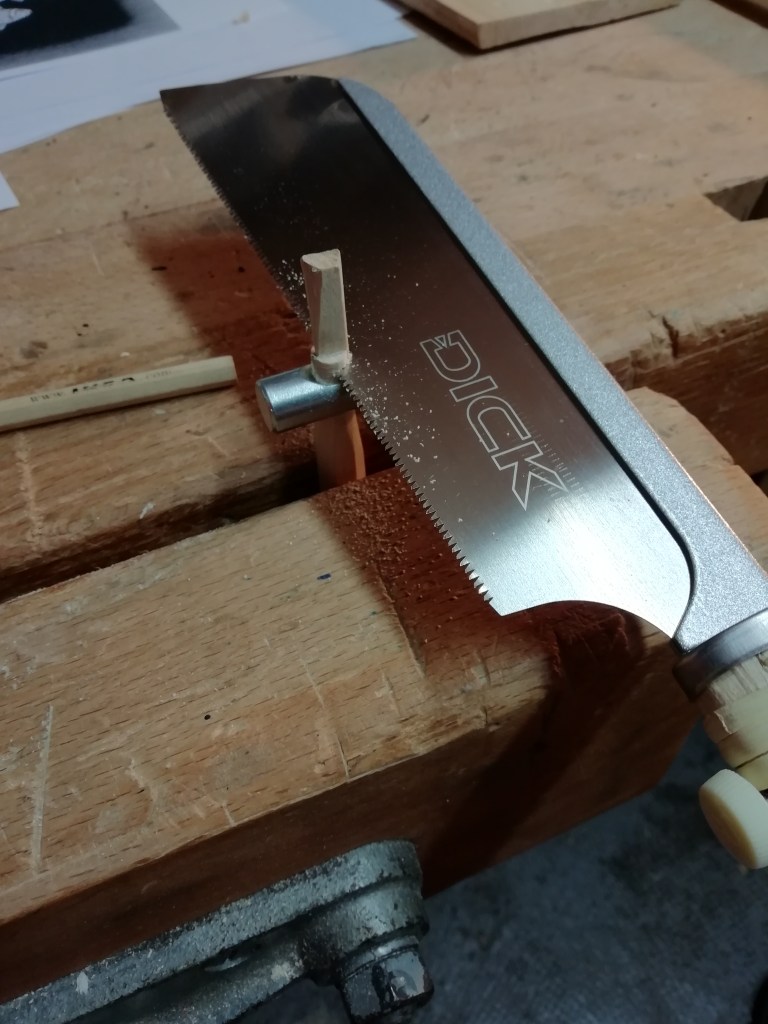

Cutting off the excess the next day

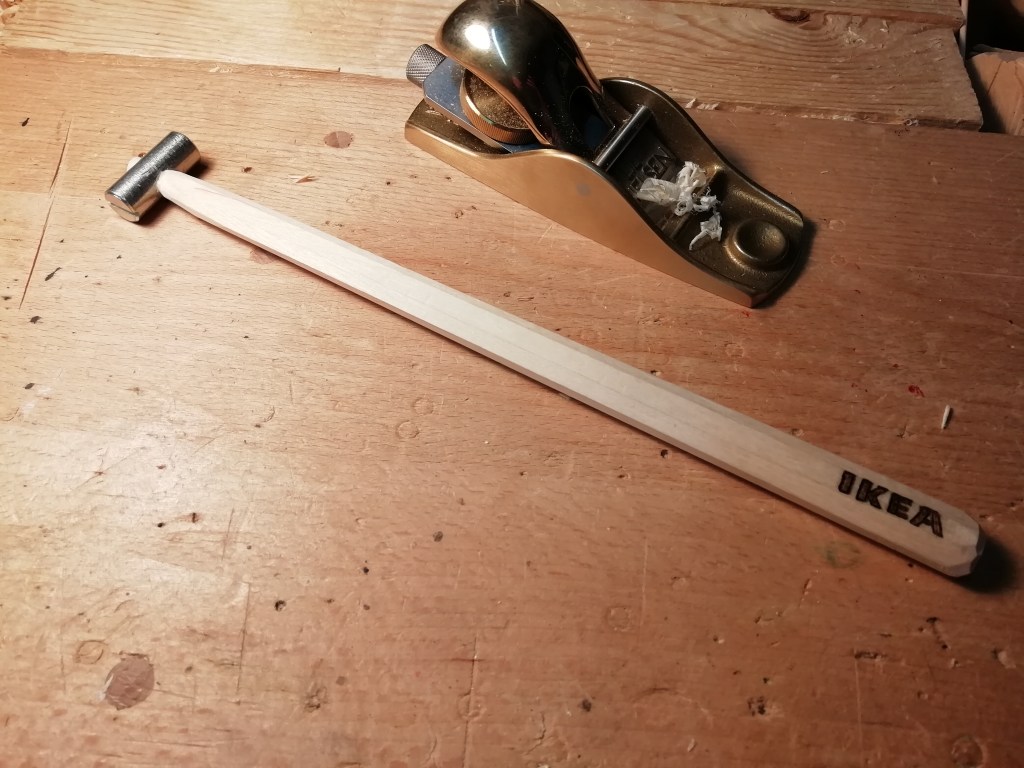

The finished hammer. Please note this post was not sponsored by IKEA.

Oil the handle and pat yourself on the back. Make these for your woodworker friends and give them away to other people who might want them. They make excellent Christmas or birthday presents. Woodburning an IKEA logo on the handle is of course optional.

-Rudy Everts
